Van Body

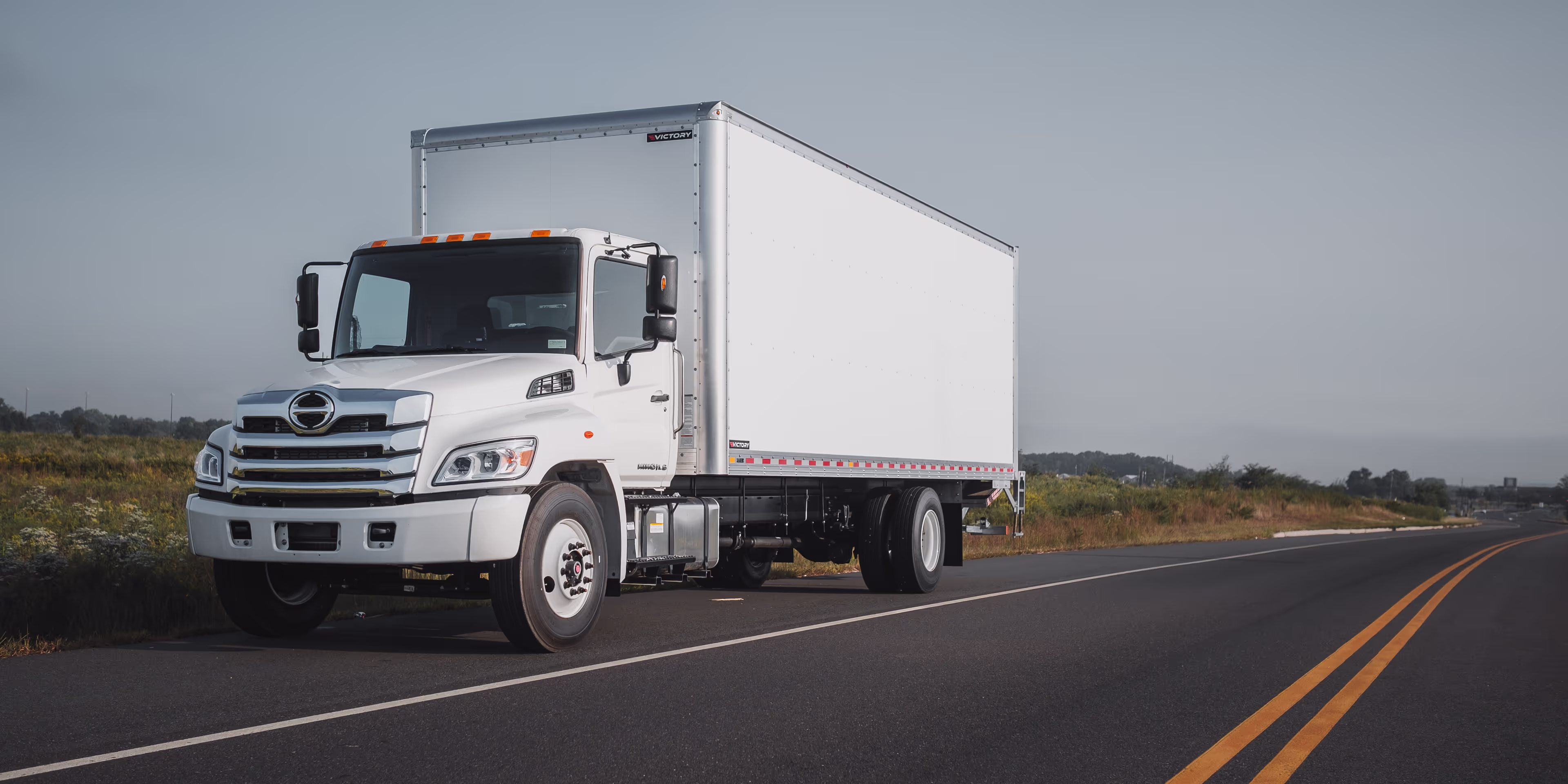

Dry freight van body — 12' to 30'

Victory rebuilt the dry freight van body around 35 years of customer feedback, with a focus on cargo protection, structural durability, and faster loading. Composite side panels resist damage and weather without adding weight, while a stainless rear frame with engineered corner gussets keeps the body square over a long service life.

At a Glance

Body Lengths

12' to 30'

Side Wall

6mm bonded composite

Rear Door

Extreme Duty roll-up

Warranty

5-year limited

Dimensions

No items found.

Construction & Materials

Subframe

3" I-beam crossmembers on 12" centers with 4" long-rail.

Floor

1-1/8" Apitong plywood floor.

Side Wall

6mm composite wall panels pre-painted white and bonded at each shiplap seam. Extruded aluminum top and bottom rails.

Roof

.032" one-piece aluminum sheet with roof bows on 24" centers with crowned roof.

Rear Frame

Stainless steel construction with corner gussets for reinforcement.

Threshold

Stainless steel. Flush to rear sill.

Corner Caps

Proprietary cast aluminum, low-profile design manufactured specifically for Victory bodies.

Mounting

Full mount U-bolt.

Standard Equipment

Rear Door

1/4" Transglobal composite "Extreme Duty" roll-up door.

Interior Lighting

(1) LED domelight with switch.

Exterior Lighting

3/4" LED sealed clearance lights.

Bumper

ICC bumper.

Mudflaps

Victory Truck Body branded mudflaps.

Available Options

Liftgates

Sourced and installed from all major manufacturers.

Side & Rear Doors

Curbside door configurations available.

Steps & Ramps

Rear steps, grab handles, and walk ramps.

Flooring

Upgraded flooring materials and finishes.

Scuff & Lining

Interior scuff panels and wall linings.

Cargo Control

E-track, logistics posts, and tie-down systems.

Compliance & Warranty

Lighting Compliance

Exterior lighting meets FMVSS 108 standards.

Warranty

Five-year limited warranty.
